1970 Chevrolet Chevelle SS

Car

Sep 28

Project Overview

This Chevelle SS came to KTR already well put together by East Coast Cobras, running a GM Performance LS3 crate engine paired to a 5-speed manual. Solid as it was, the owner wanted more out of the platform. We answered with a Magnuson Heartbeat supercharger package, Wegner accessory drive, and Lingenfelter cam/valvetrain upgrades—a setup that wakes up the LS3 without losing street manners.

Specs
      Platform:     1970 Chevrolet Chevelle SS
      Engine:       GM Performance LS3 crate · Magnuson Heartbeat supercharger · Wegner drive kit · Lingenfelter cam/valvetrain
      Drivetrain:   5-speed manual transmission
      Brakes:       Wilwood
      Wheel/Tire:   N/A


      Audio & Connect:N/A
      Interior:     Factory SS trim
      Baseline:     421.7 HP / 378.3 dFtLb

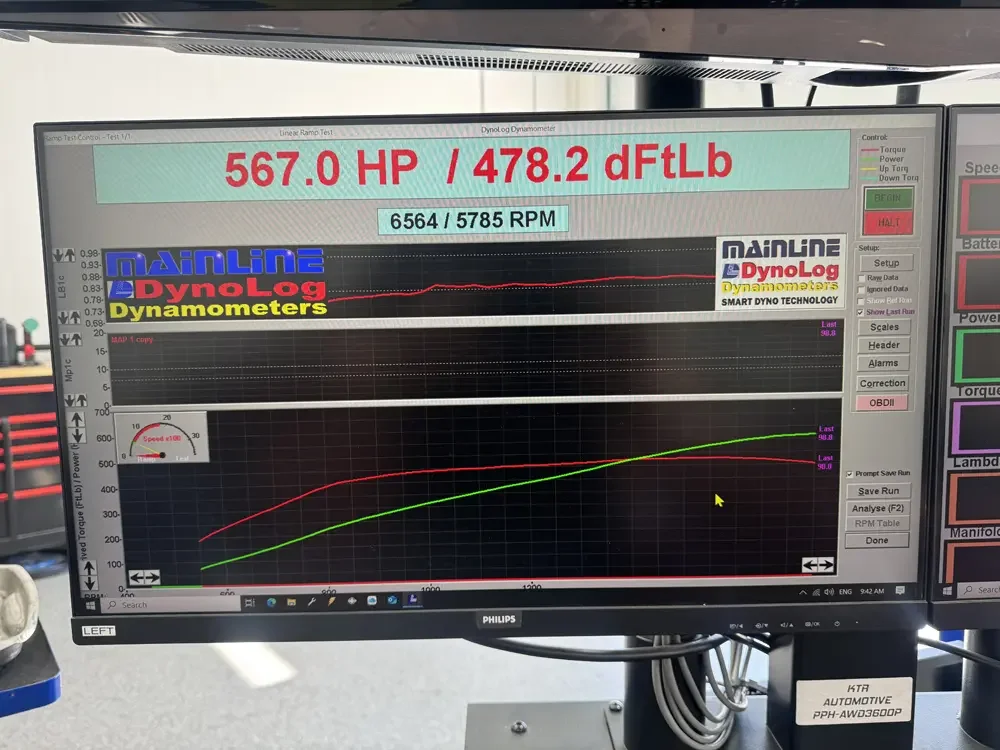

      Final Output: 567.0 HP / 478.2 dFtLb

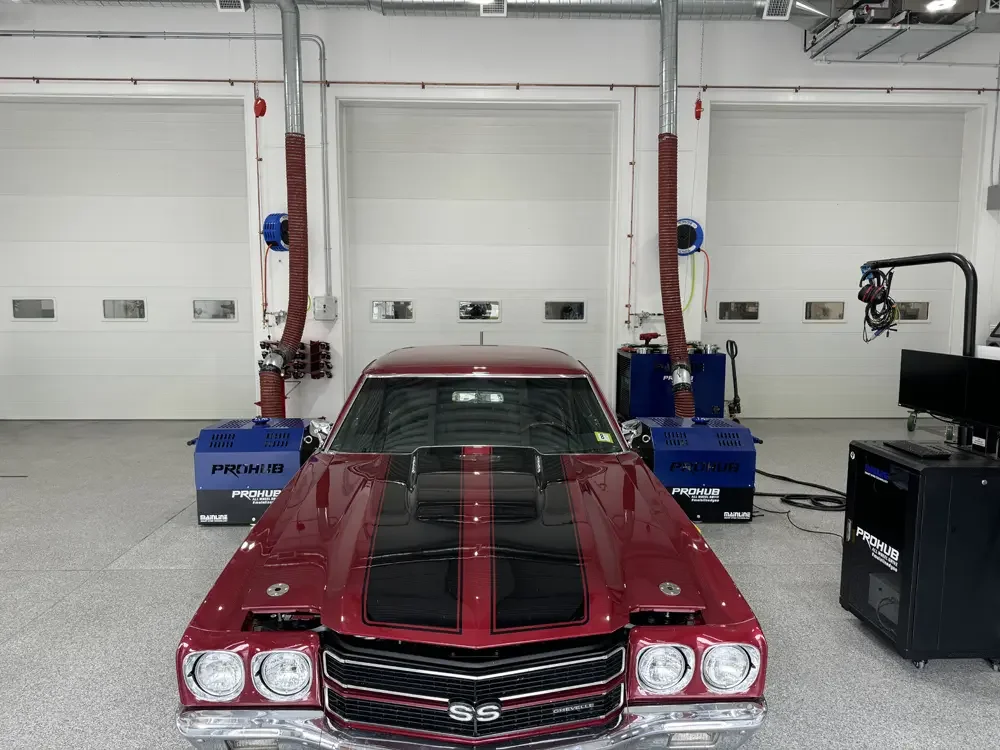

      Dyno:  Mainline ProHub Dyno


Engine & Powertrain

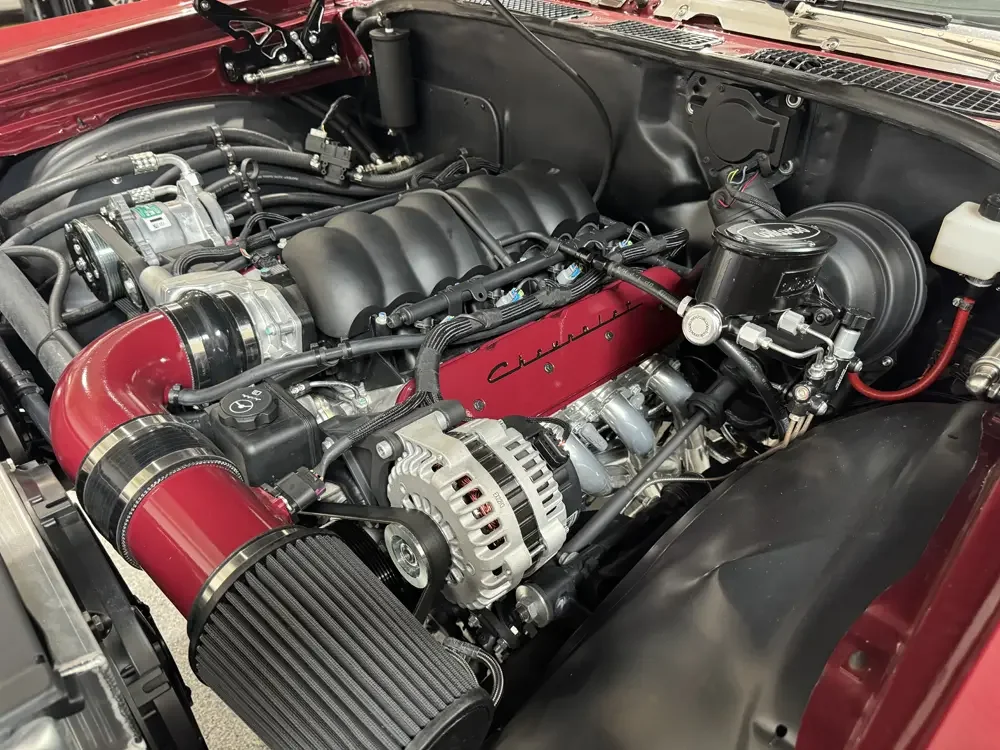

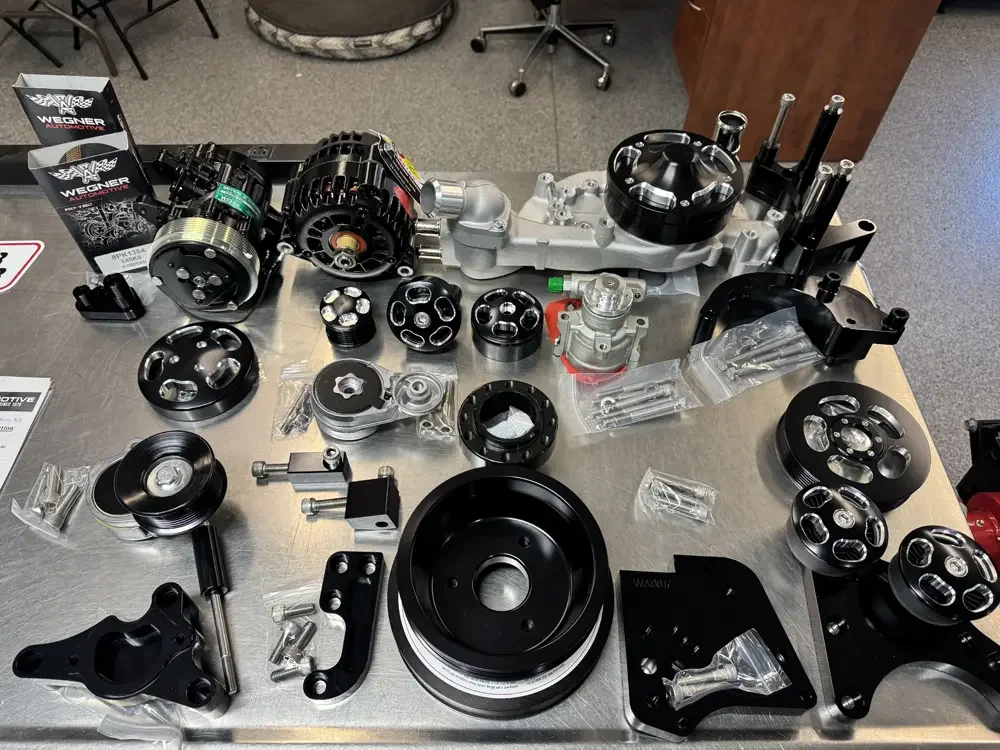

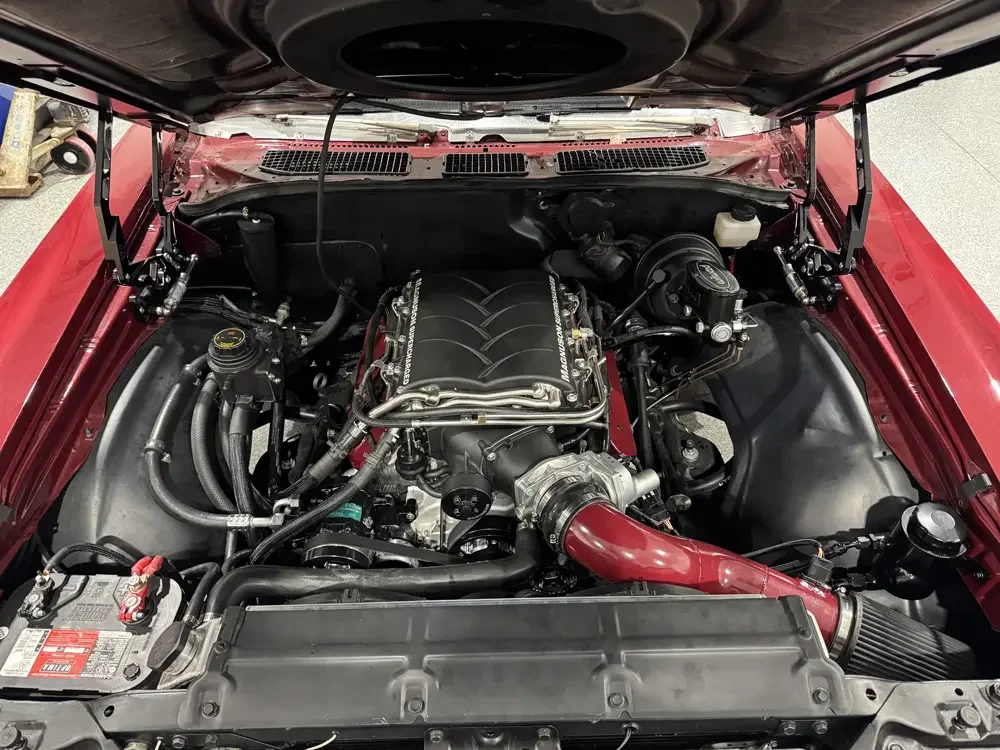

Starting from the 421 whp baseline, we installed a Magnuson Heartbeat supercharger for efficient boost delivery and paired it with a Wegner Automotive accessory drive kit for reliability. The camshaft and valvetrain were upgraded with Lingenfelter Performance components, completing a top-end package designed to add both power and durability.
