2012 Chevrolet Caprice PPV Kenne Bell Supercharger Package w/ Manual Transmission Swap
Project Overview
This low-mileage PPV was reworked into a sleeper with a manual swap, cam/heads/headers, and a Kenne Bell supercharger. We added KPM fueling and dyno calibration, plus 4.10 gears, line lock, and CarPlay to keep it usable and factory-clean.
Specs
- Platform:
- 2012 Chevrolet Caprice PPV
- Engine:
- LS w/ cam & heads · Long-tube headers · Kenne Bell supercharger · KPM in-tank pump
- Drivetrain:
- Manual transmission swap Line-lock kit
- Brakes:
- Stock
- Wheel/Tire:
- Stock
- Audio & Connect:
- CarPlay retrofit using factory screen
- Interior:
- Sleeper-stock presentation
- Baseline:
- Est. 305 HP
- Final Output:
- 571.8 HP / 473.1 dFtLb
- Dyno:
- Mainline ProHub Dyno
Engine, Induction & Drivetrain

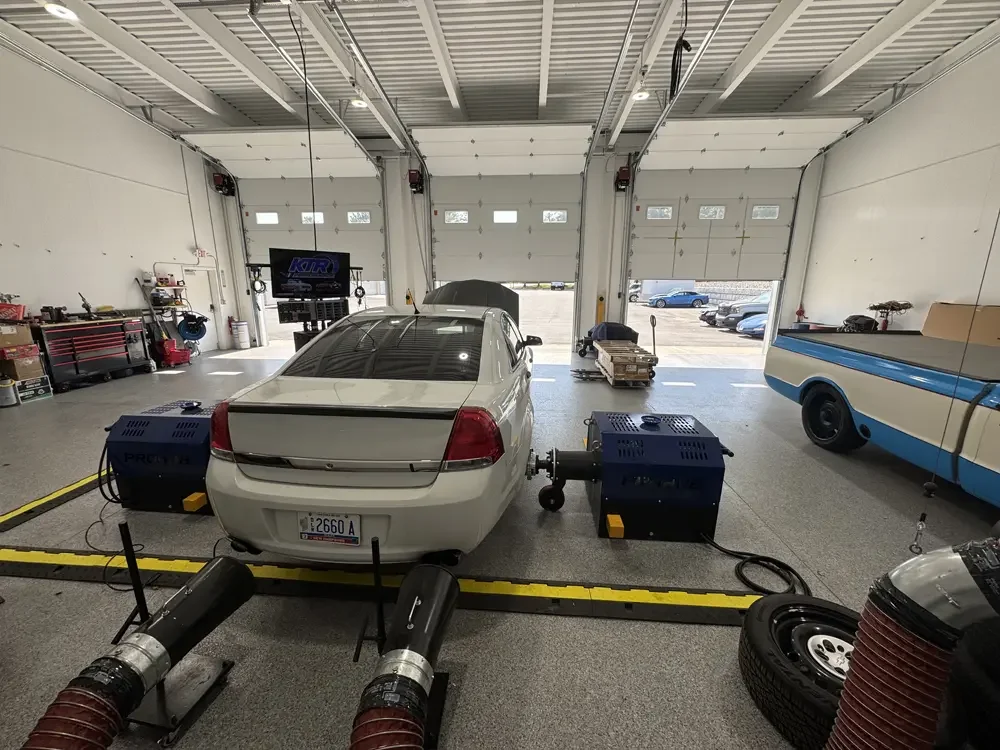

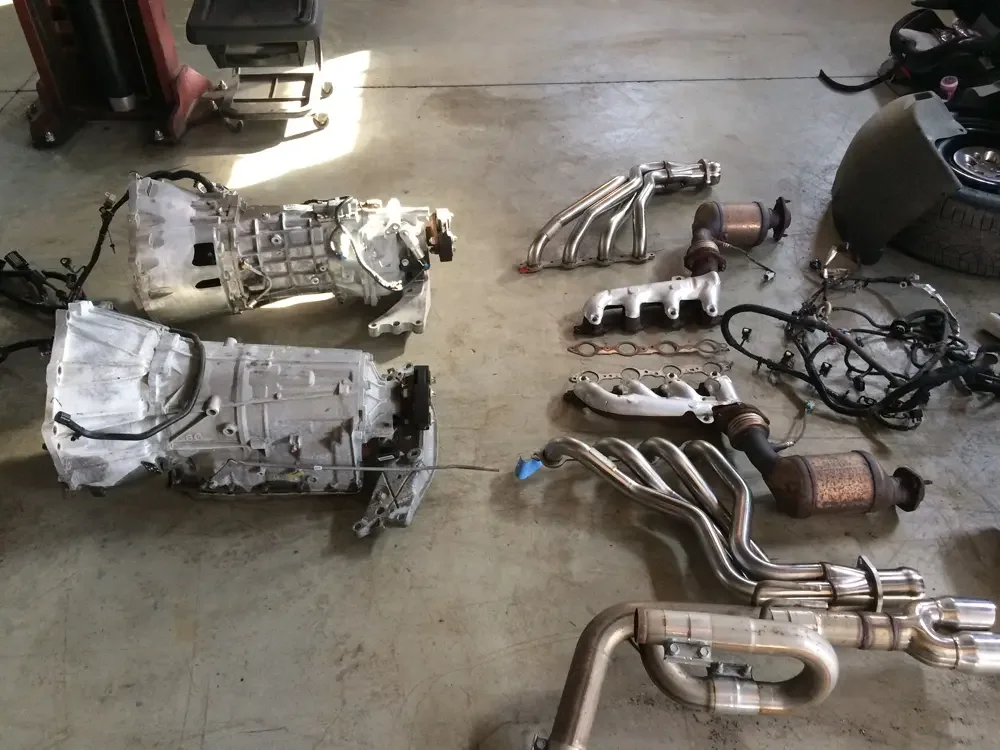

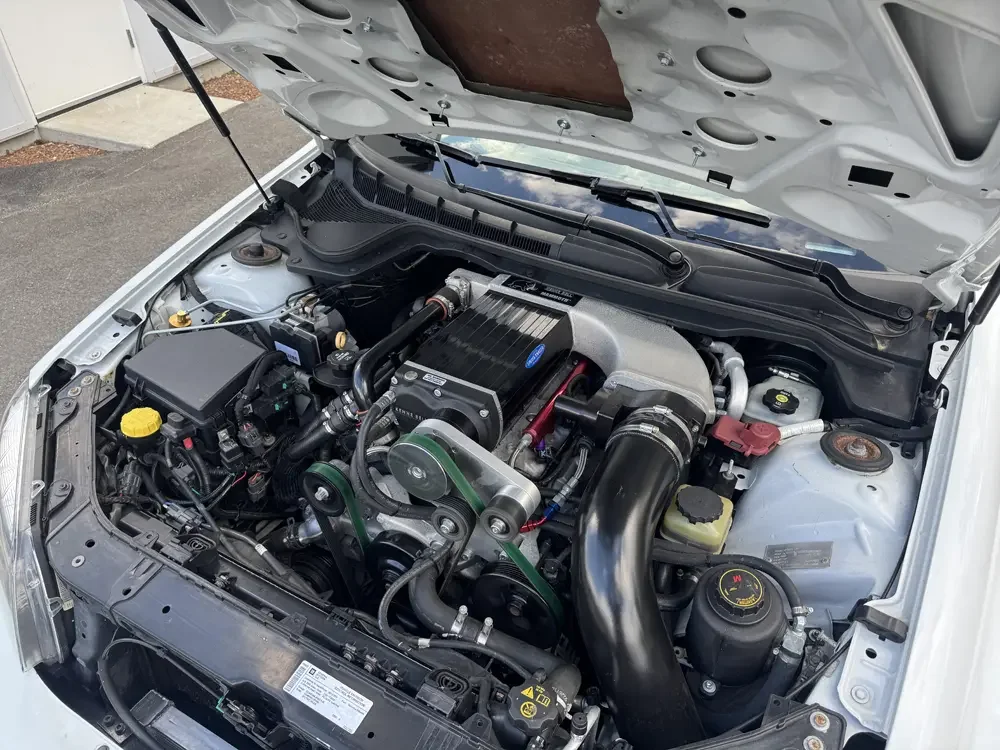

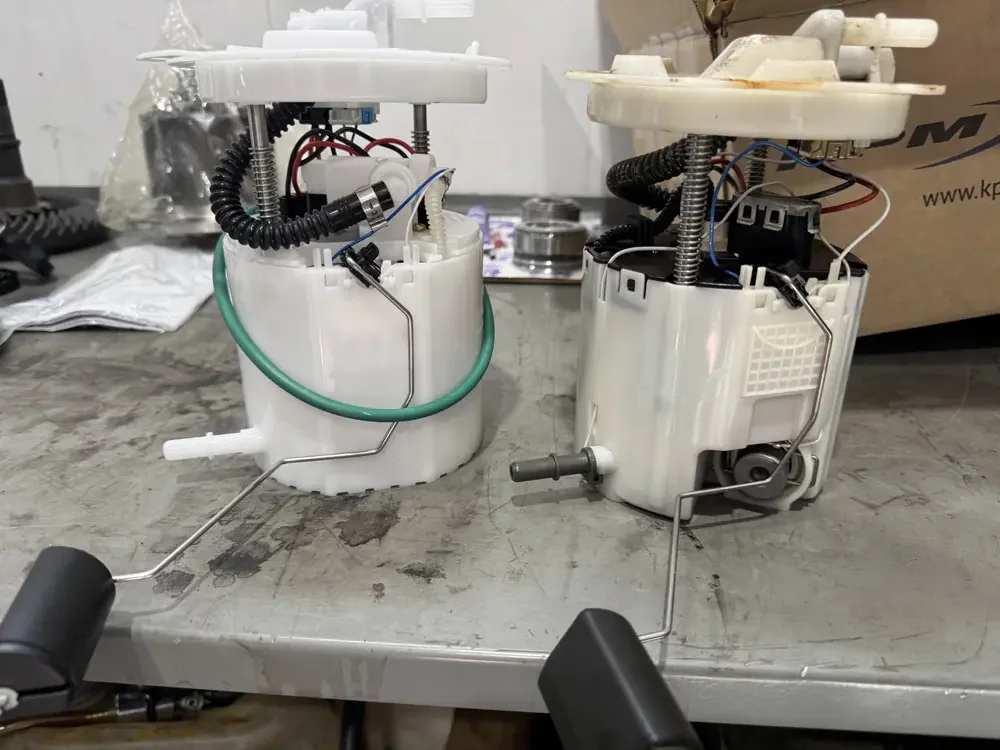

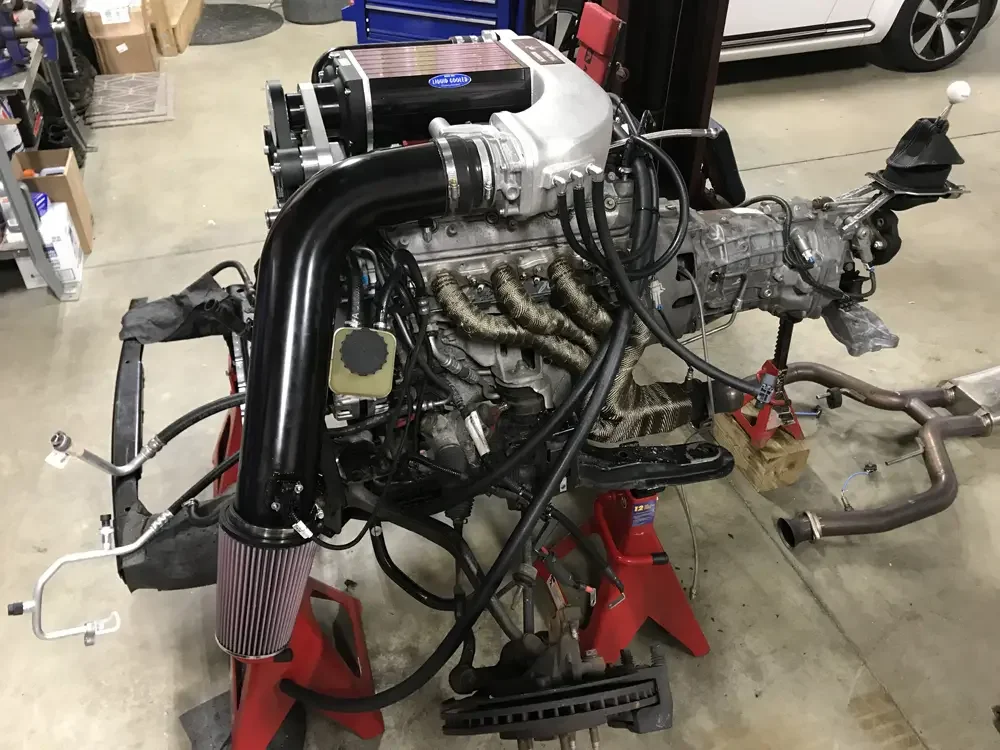

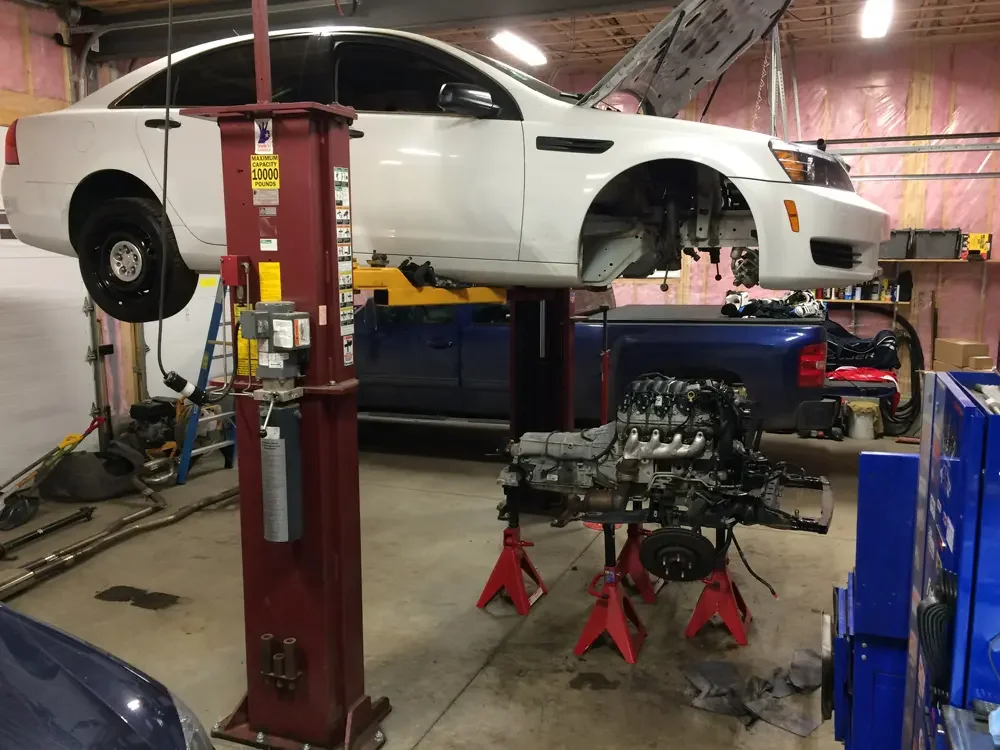

The build began with a heads/cam/headers package and supporting components, then stepped up to a Kenne Bell supercharger for serious airflow. To support fueling under boost, we installed a KPM in-tank pump upgrade kit and completed a full in-house dyno calibration on the Mainline Hub Dyno. The centerpiece is the manual transmission swap—executed with factory-based parts so the car drives and looks like it could have come that way from GM.
Wheels, Tires & Brakes

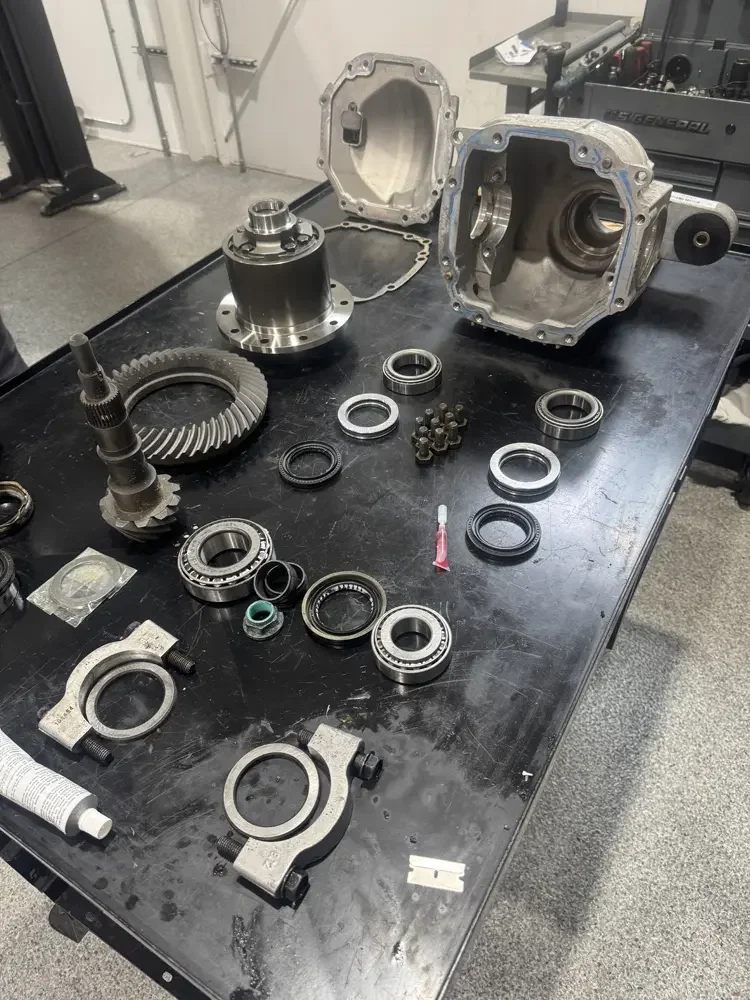

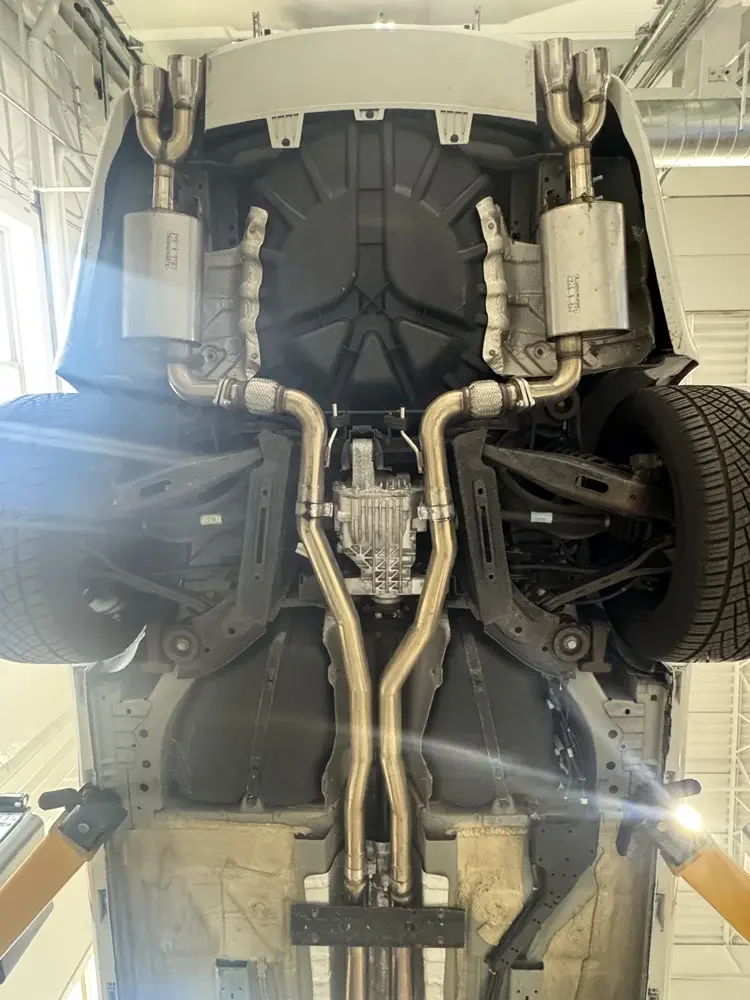

For better launch control and heat management during testing, we fitted a line-lock kit. The rear axle was updated to 4.10 gears, sharpening response and keeping the engine in the meat of the powerband between shifts—especially helpful with the manual.
Interior & Connectivity

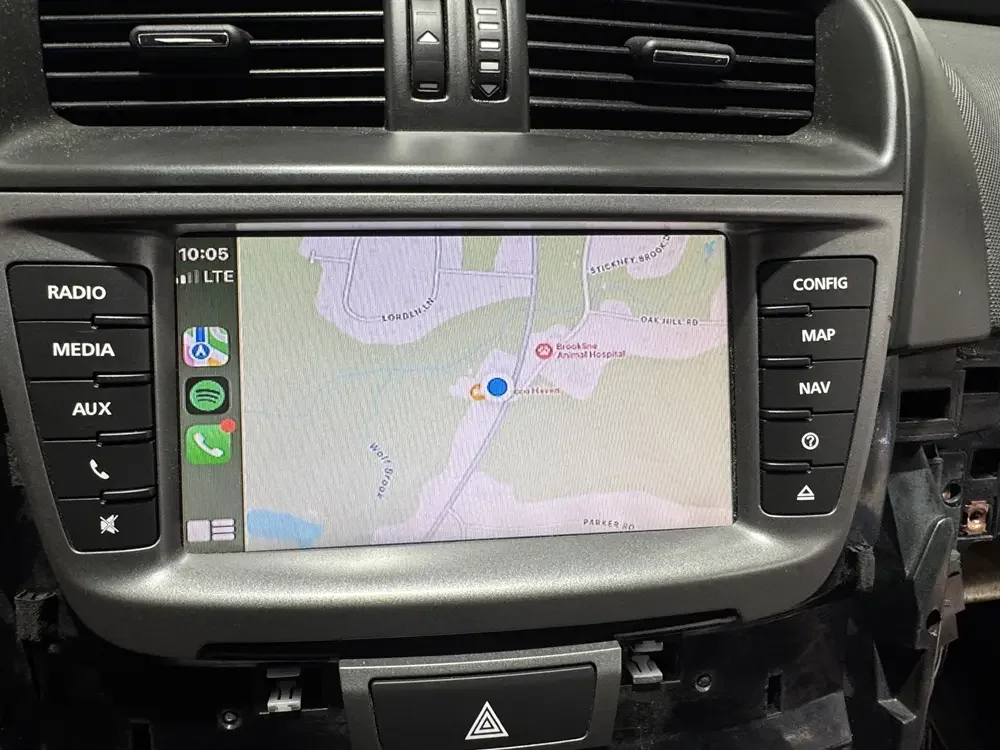

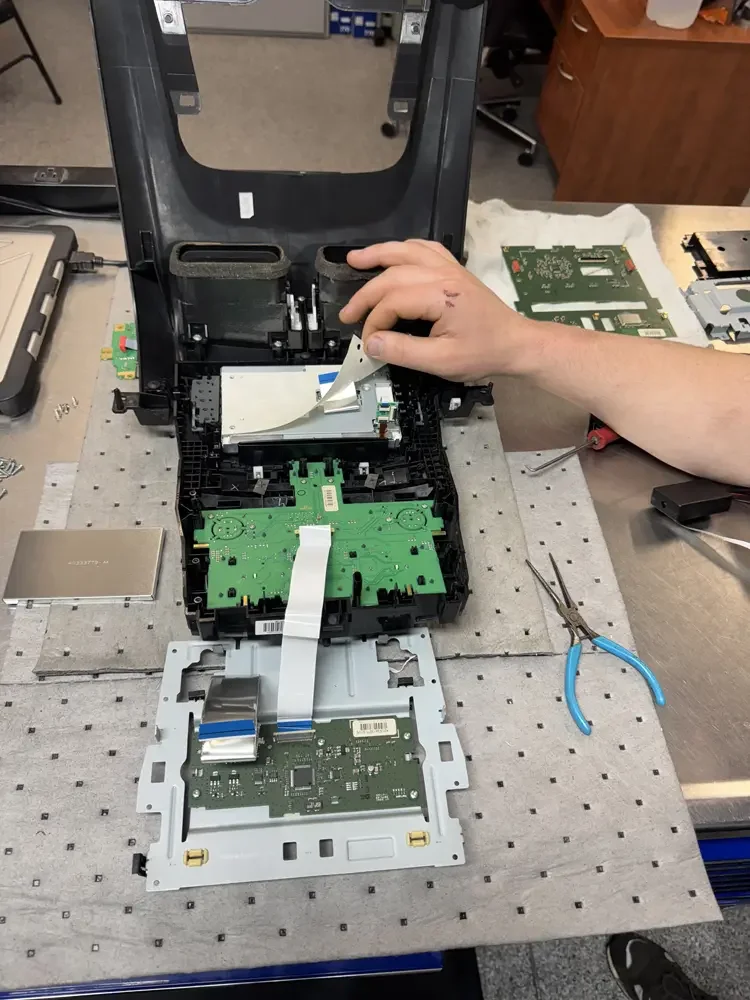

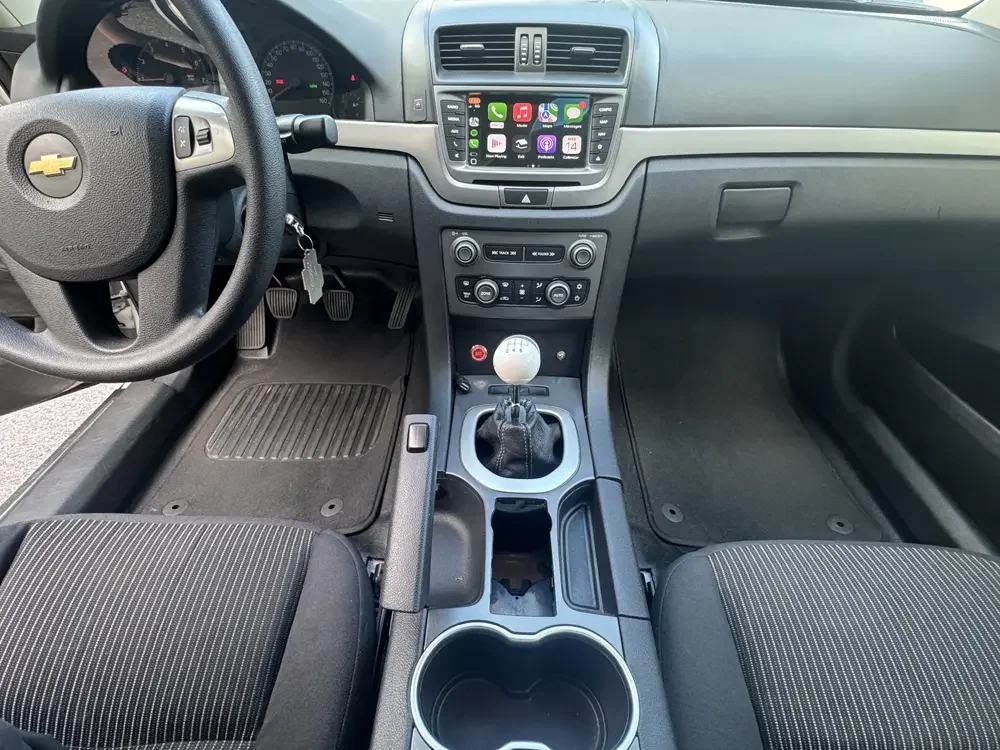

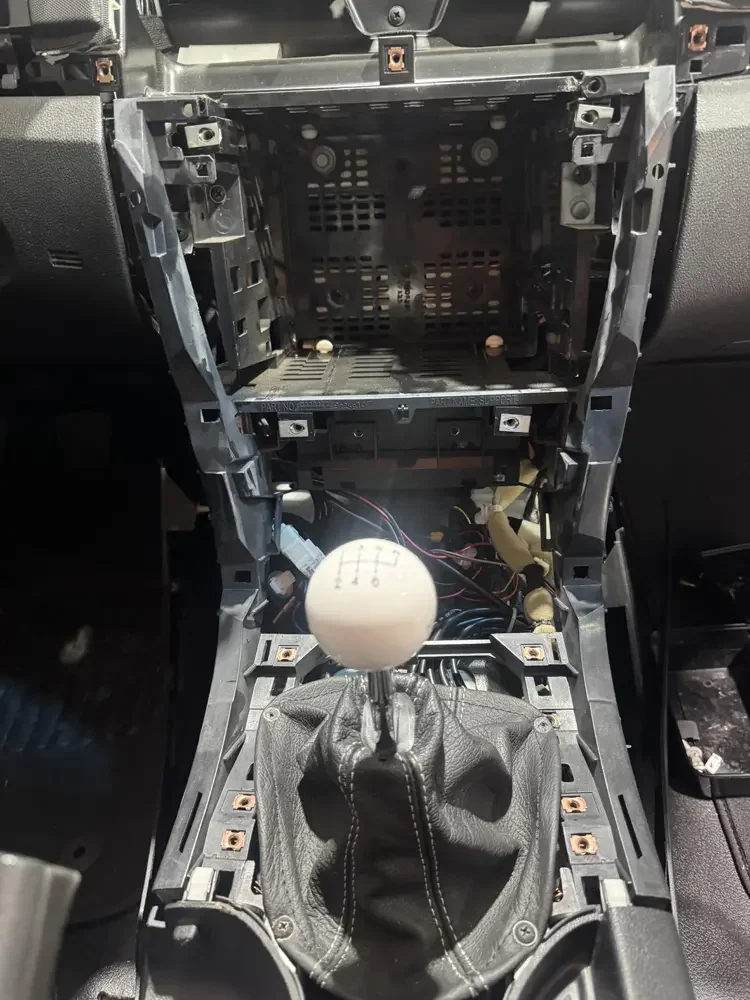

To modernize daily use without losing the sleeper vibe, we added CarPlay to the factory screen, keeping the interior stock-looking while delivering navigation, music, and hands-free control.
Dyno Results
Note: Bell–supercharged LS; manual swap; KPM in-tank pump; 4.10 gears; line lock.
